High-D Definition Digital Melting Point Meter 4 Samples at a Time Direct Printer Output & High Quality Video for Machine Testing

warranty : 1 Year

Place of Origin : Shanghai, China

Standard : ISO

Keyword : High-definition video

Price : $1,728-1,798 / piece

Product name : melting point meter

Application : Chemicals, foods, medicines, spices, dyes

MOQ : 1

Measuring range : RT-360℃

MOQ : 1 piece

Brand Name : JIAHANG

customized support : OEM

Model : Digipol-M30

Model Number : Digipol-M30

Weight : 4.1KG

Display : TFT HD color screen

Accuracy : ±0.3℃

Contact Now

Product Description

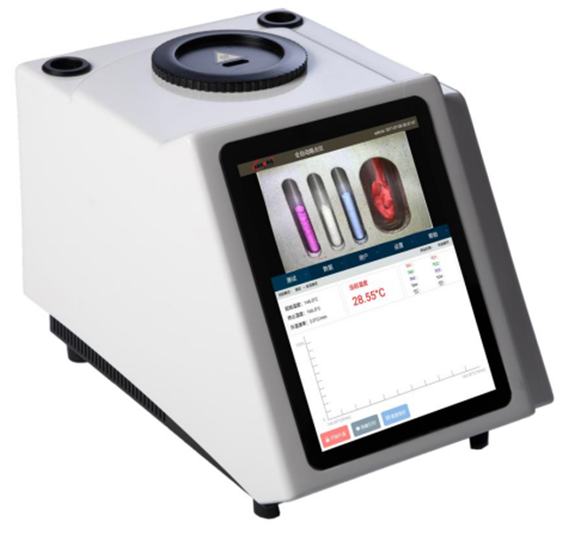

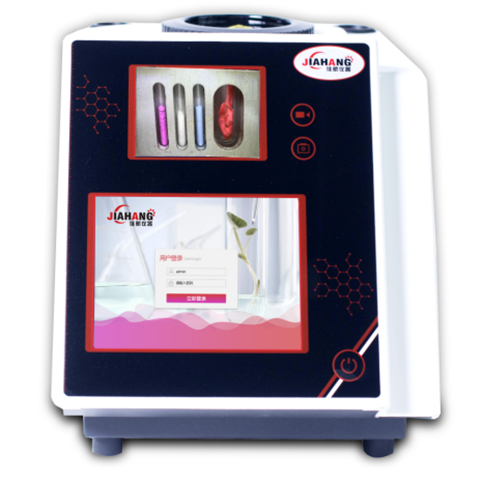

Automatic melting point instrument - Digipol-M30

High-D Definition Digital Melting Point Meter 4 Samples at a Time Direct Printer Output & High Quality Video for Machine Testing

Brief Introduction

Automatic melting point instrument series perfectly combine high-precision temperature control technology and high-definition video camera technology, not only to provide users with accurate,stable and reliable test results, but also to bring users efficient and convenient test experience. Highdefinition video can easily and clearly see the whole process of sample melting, automatic detection realtime. Tupu display, convenient for users to accurately measure the sample melting point and melt distance.

Fields of use

1.Melting point meter plays an important role in chemical industry and medical research. It is a necessary instrument for the production of drugs, spices, dyes and other organic crystal substances.Corresponding enterprises (pharmaceutical related enterprises, chemical enterprises) 2.Universities and Research Institutes (chemical and pharmaceutical related schools and research institutes) 3.Government supervision departments (Entry-Exit Inspection and Quarantine Food and Drug Administration, Grain Administration, etc.)

The main features

1: With refrigeration system, 3 samples can be processed at a time;

2: One-key automatic detection function, effectively avoid human error;

3: PID precise temperature control;

4: Can record and playback the experiment process, not missing every detail;

5: in full compliance with the national standard and ISO oil melting point determination method

Specification

Model	DigiPol-M30	DigiPol-M50	DigiPol-M70	DigiPol-M80	DigiPol-M90	DigiPol-M130
Temperature range	Room temperature -360℃	Room temperature -420℃	Room temperature -360℃	Room temperature -400℃	Room temperature -420℃	Room temperature -420℃
Detection method	Semi-automatic	Semi-automatic	Fully automatic (compatible with manual)	Fully automatic (compatible with manual)	Fully automatic (compatible with manual)	Fully automatic (compatible with manual)
Processing capacity	4 pcs per batch	4 pcs per batch	4 pcs per batch	4 pcs per batch	4 pcs per batch	4 pcs per batch
Test mode	Melting point	Melting point	Melting point	Melting point	Melting point	Melting point, boiling point, cloud point, slip point
Temperature resolution	0.01℃	0.01℃	0.01℃	0.01℃	0.01℃	0.01℃
Heating rate	0.1℃--20℃ (200 gears, steplessly adjustable)	0.1℃--20℃ (200 gears, steplessly adjustable)	0.1℃--20℃ (200 gears, steplessly adjustable)	0.1℃--20℃ (200 gears, steplessly adjustable)	0.1℃--20℃ (200 gears, steplessly adjustable)	0.1℃--20℃ (200 gears, steplessly adjustable)
Temperature control mode	PID precise temperature control, fully enclosed design of the furnace body	PID precise temperature control, fully enclosed design of the furnace body	PID precise temperature control, fully enclosed design of the furnace body	PID precise temperature control, fully enclosed design of the furnace body	PID precise temperature control, fully enclosed design of the furnace body	PID precise temperature control, fully enclosed design of the furnace body
Accuracy	±0.3℃ (250℃)	±0.2℃ (250℃)	±0.3℃ (250℃)	±0.2℃ (250℃)	±0.2℃ (250℃)	±0.2℃ (250℃)
Repeatability	Melting point repeatability was ±0.1℃at 0.1℃/Min	Melting point repeatability was ±0.1℃at 0.1℃/Min	Melting point repeatability was ±0.1℃at 0.1℃/Min	Melting point repeatability was ±0.1℃at 0.1℃/Min	Melting point repeatability was ±0.1℃at 0.1℃/Min	Melting point repeatability was ±0.1℃at 0.1℃/Min
magnification	9 times	9 times	9 times	9 times	9 times	9 times
Display method	10.4 inch FTF color touch color screen	10.4 inch FTF color touch color screen	10.4 inch FTF color touch color screen	10.4 inch FTF color touch color screen	10.4 inch FTF color touch color screen	10.4 inch FTF color touch color screen
Data storage	32G	64G	32G	64G	128G	128G
Map save	200 groups	400 groups	200 groups	400 groups	600 groups	600 groups
Map	--	--	Any zoom	Any zoom	Any zoom	Any zoom
User management	YES /Level 4 authority	YES /Level 4 authority	YES /Level 4 authority	YES /Level 4 authority	YES /Level 4 authority	YES /Level 4 authority
Audit trails	YES	YES	YES	YES	YES	YES
Electronic signature	YES	YES	YES	YES	YES	YES
Custom method libraries	YES	YES	YES	YES	YES	YES
Export file verification advanced protection MD5	YES	YES	YES	YES	YES	YES
Printing method	WIFI serial port	WIFI serial port	WIFI serial port	WIFI serial port	WIFI serial port	WIFI serial port
Export in multiple file formats	PDF & EXCEL	PDF & EXCEL	PDF & EXCEL	PDF & EXCEL	PDF & EXCEL	PDF & EXCEL
Data interface	USB RS232 SD Wi-Fi,RJ45,U disk	USB RS232 SD Wi-Fi,RJ45,U disk	USB RS232 SD Wi-Fi,RJ45,U disk	USB RS232 SD Wi-Fi,RJ45,U disk	USB RS232 SD Wi-Fi,RJ45,U disk	USB RS232 SD Wi-Fi,RJ45,U disk
Small capillary size	OD: Φ1.3mm ID:Φ1.1mm	OD: Φ1.3mm ID:Φ1.1mm	OD: Φ1.3mm ID:Φ1.1mm	OD: Φ1.3mm ID:Φ1.1mm	OD: Φ1.3mm ID:Φ1.1mm	OD: Φ1.3mm ID:Φ1.1mm
Large capillary size	--	--	--	--	--	OD: Φ4.2mm ID:Φ3.8mm
Instrument size	400280 330mm	400280 330mm	400280 330mm	400280 330mm	400280 330mm	400280 330mm
power supply	110-230V 50/60Hz 120W	110-230V 50/60Hz 120W	110-230V 50/60Hz 120W	110-230V 50/60Hz 120W	110-230V 50/60Hz 120W	110-230V 50/60Hz 120W
Weight	4.1kg	4.1kg	4.1kg	4.1kg	4.1kg	4.1kg
