Potentiometric Titrator Multi-channel Fully Automatic Electrochemical Analysis Instrument Burette Filling Resolution 1uL

power : Electronic

warranty : 1 Year

Brand Name : JIAHANG

Type : Automatic

Function : volumetric analysis

Certificate : CE Certificate

Keyword : Coulometric Karl Fischer Titrator

MOQ : 1PCS

customized support : OEM

MOQ : 1 set

Product name : Multi-channel automatic potentiometric titrator

Application : Widely

Measuring range : -2000.0MV~+2000.0MV -20.000PH~+20.000PH

Power supply : 220V 50Hz

Display : LCD

Price : $4,719-4,919 / set

Place of Origin : Shanghai, China

Model Number : JH-T7

Contact Now

Product Description

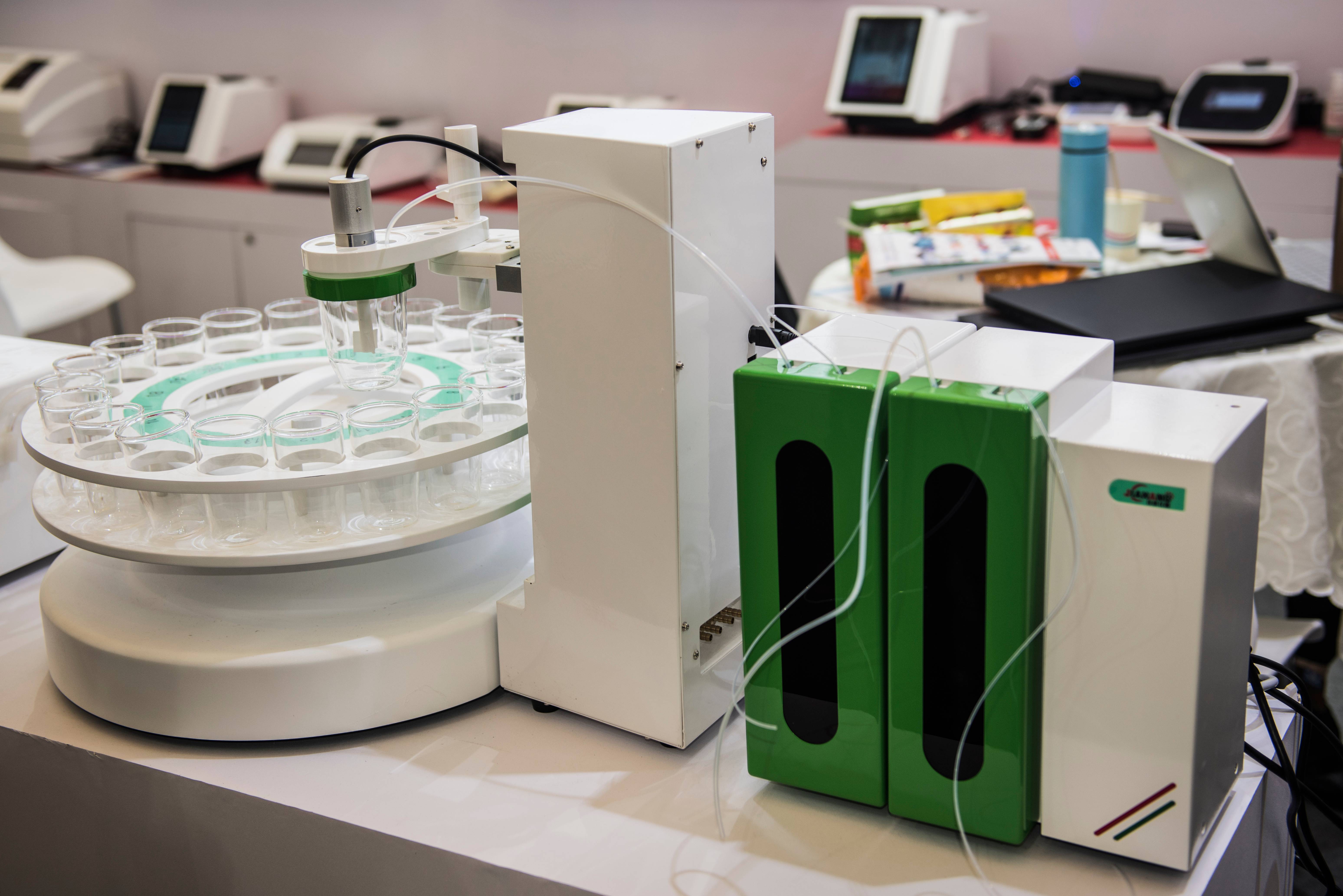

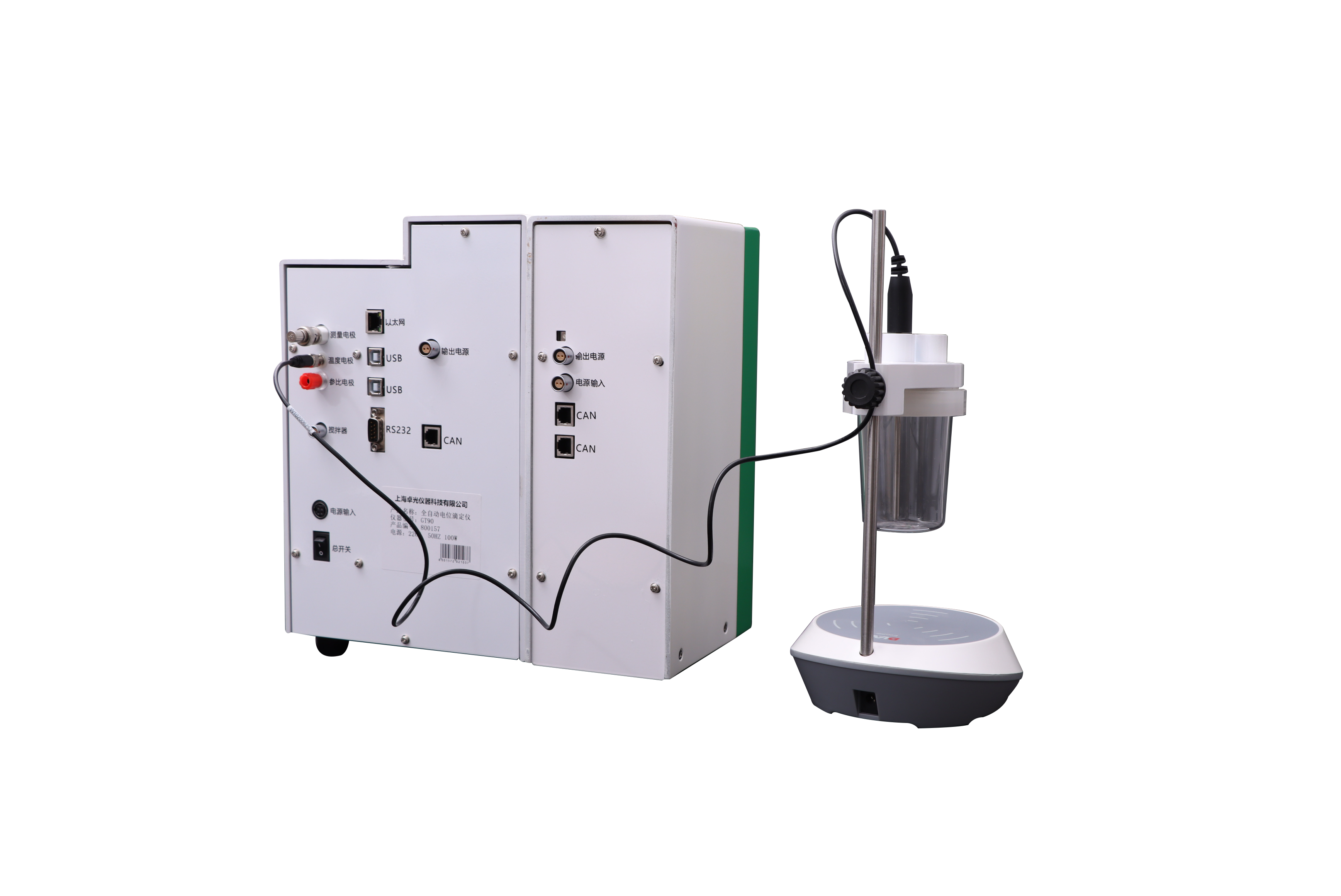

Multi-channel automatic potentiometric titrator

Potentiometric Titrator Multi-channel Fully Automatic Electrochemical Analysis Instrument Burette Filling Resolution 1uL

Brief Introduction

Automatic potentiometric titration device is a high-precision electrochemical analysis instrument for volumetric analysis using potentiometric titration method. It adopts modular design and consists of volumetric titration device, control device and testing device. It can carry out acid-base titration, REDOX, precipitation and complexation titration. The instrument has the functions of constant titration, micro titration, end-point setting titration, volume setting titration and mode titration. Users can also build their own special titration methods according to their actual needs.

Fields of use

Automatic potential titrator belongs to the laboratory general basic equipment, the use is very wide, can be used in food, drug testing, disease control, commodity inspection, water treatment, petroleum, chemical, Marine, electric power, environmental protection, new energy, teaching, scientific research and other related fields.

Application field

1.Acid-base titration, e.g., oxalic acid (aqueous/non-aqueous) content 2.Redox titration, e.g., iodine value, iron (II) content 3.Precipitation titration, e.g., chloride content 4.Complexometric titration, such as calcium content, 5.The titration was performed with a polarized electrode (Ipol, Upol)

The main features

1. Channel liquid feeding module, can be equipped with 16/18/20 station rotary disc type automatic sampler 2. Can drive multiple feeding module units, burette and pipeline should be acid, alkali and corrosion resistant. 3. Imports corrosion resistant PTFE rotary valve, PTFE corrosion resistant burette, high power mixing platform, the use of magnetic stirring coil 4. High precision closed loop control to ensure accurate titration 5. Burette filling resolution 1uL 6. High precision burette accuracy up to 0.003mm 7. Automatically check the state of the instrument after starting the machine 8. The whole pipeline is fully sealed design, quick and convenient to replace 9. Real-time display of titration curve and measurement results, convenient operation 10. Support acid-base titration, REDOX titration, precipitation titration, complex titration, non-aqueous titration and other titration methods 11. Comply with GMP standard, and the titration results meet GLP requirements 12. Automatic sample loading, automatic pipeline cleaning, automatic measurement of experimental results, automatic recording and drawing of titration pH- titration volume real-time change curve. 13. In line with the 2020 edition of the Pharmacopoeia 14. With multi-level user rights management function, to achieve audit tracking and rights management functions

Specification

Model	JH-T6	JH-T7	JH-T8	JH-T9
Measuring range	-2000.0MV~+2000.0MV -20.000PH~+20.000PH	-2000.0MV~+2000.0MV -20.000PH~+20.000PH	-2000.0MV~+2000.0MV -20.000PH~+20.000PH	-2000.0MV~+2000.0MV -20.000PH~+20.000PH
Resolution	0.1MV 0.001PH	0.1MV 0.001PH	0.1MV 0.001PH	0.1MV 0.001PH
Precision	0.1MV 0.005PH	0.1MV 0.003PH	0.1MV 0.002PH	0.1MV 0.002PH
Measurement mode	MEAS: measure pH /mV/ T CAL: pH calibration (multi-point) SET: Set the end point mode MET: equivalent titration DET: Dynamic Titration
Titration mode	Acid-base titration/ Redox titration/ Precipitation titration/ Complexometric titration/ Non-aqueous	Acid-base titration/ Redox titration/ Precipitation titration/ Complexometric titration/ Non-aqueous	Acid-base titration/ Redox titration/ Precipitation titration/ Complexometric titration/ Non-aqueous	Acid-base titration/ Redox titration/ Precipitation titration/ Complexometric titration/ Non-aqueous
Titration cup capacity	250ml	250ml	250ml	250ml
Temperature measurement range	0-100℃	-5-120℃	-5-120℃	-5-120℃
Temperature measurement accuracy	±0.1℃	±0.1℃	±0.1℃	±0.1℃
communication method	1*USB, 232 serial port, Ethernet	2*USB, 232 serial port, Ethernet	2*USB, 232 serial port, Ethernet	2*USB, 232 serial port, Ethernet
Dosing unit	Built-in dosing unit	Built-in dosing unit	Built-in dosing unit	Built-in dosing unit
Dosing module unit	1 set of built-in titration dosing channel	2 set of built-in titration dosing channel	2 set of built-in titration dosing channel	4 set of built-in titration dosing channel
Expandable number of dosing channels	8	8	8	8
Burette specifications	1ml 5ml 10ml 25ml 50ml (10ml Standard )	1ml 5ml 10ml 25ml 50ml (10ml Standard )	1ml 5ml 10ml 25ml 50ml (10ml Standard )	1ml 5ml 10ml 25ml 50ml (10ml Standard )
Burette resolution	1/48,000	1/48,000	1/48,000	1/48,000
Burette refill time	10 seconds (100% filling speed)	10 seconds (100% filling speed)	10 seconds (100% filling speed)	10 seconds (100% filling speed)
control unit	PC with software (additional to the computer)	PC with software (additional to the computer)	PC with software (optional computer)	PC with software (optional computer)
Autosampler	Can be used in conjunction with the GT robot sampling system for the analysis of large quantities of samples	Can be used in conjunction with the GT robot sampling system for the analysis of large quantities of samples	Can be used in conjunction with the GT robot sampling system for the analysis of large quantities of samples	Can be used in conjunction with the GT robot sampling system for the analysis of large quantities of samples
Self-check function	Automatically check the status of the instrument after starting	Automatically check the status of the instrument after starting	Automatically check the status of the instrument after starting	Automatically check the status of the instrument after starting
Calibration function	YES	YES	YES	YES
Application editing function	YES	YES	YES	YES
storage	More than 300G	More than 300G	More than 300G	More than 300G
Default method	More than 300G	More than 300G	More than 300G	More than 300G
Comply with FDA, GMP, GLP	Audit trail, hierarchical management, electronic signature	Audit trail, hierarchical management, electronic signature	Audit trail, hierarchical management, electronic signature	Audit trail, hierarchical management, electronic signature
Pipeline	PTFE titration line (corrosion resistant)	PTFE titration line (corrosion resistant)	PTFE titration line (corrosion resistant)	PTFE titration line (corrosion resistant)
Stirring method	Overhead spiral stirrer or magnetic stirring	Overhead spiral stirrer or magnetic stirring	Overhead spiral stirrer or magnetic stirring	Overhead spiral stirrer or magnetic stirring
PTFE valve	Imported anti-corrosion rotary valve	Imported anti-corrosion rotary valve	Imported anti-corrosion rotary valve	Imported anti-corrosion rotary valve
Micro detection electrode	Imported	Imported	Imported	Imported
Micro syringe pump	Imported	Imported	Imported	Imported

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Exhibition

Certifications

Why Choose Us

Hyperpurex® lab water system Bring you products and services beyond expected

•Under management system of ISO9001 and ISO14001, in accordance with CE quality standards, we carry out product design, research & development and manufacturing to ensure long-term stability and reliability of quality. •To help you meet industry specifications, we can assist in providing certificates of conformity, calibration certificates, quality certificates, performance reports, water quality compliance certificates and other supporting documents upon request. •Hyperpurex® S Smart series - lab water system can produce pure water/ultrapure water to meet the requirements of the following organizations: •Chinese Pharmacopoeia-CP, United States Pharmacopoeia-USP, European Pharmacopoeia-EP, Japanese Pharmacopoeia -JP, GB/T 33087-2016,GB/T 6682-2008,GB/T 11446.1-2013,ASTM D1193,ASTM D 5196,ISO 3696,CLSI,JIS K 0557.

Our Service

We wholeheartedly serve, only for your full satisfaction. With customer satisfaction as the service goal, to continue to create value for customers as the direction, to grow together with customers as the concept, based on professionalism, we are full of sincerity and enthusiasm, committing to providing customers with professional and perfect technical support and after-sales service. So that you can devote all your energy to focus on the work. Our service include: •12 months product warranty (excluding filter consumables) •On-site professional training of installation, use and maintenance. •Regular engineer return visit service •Free continuous optimization and upgrading service of product life cycle. •Professional and rigorous 3Q(IQ/OQ/PQ) verification documentation and verification services in both English and Chinese, to help you meet compliance requirements of GLP, GMP and cGMP.
